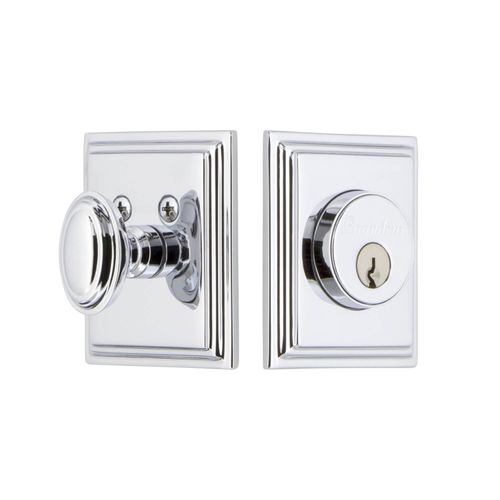

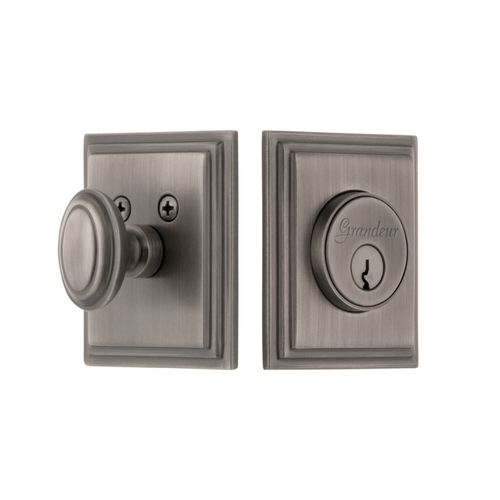

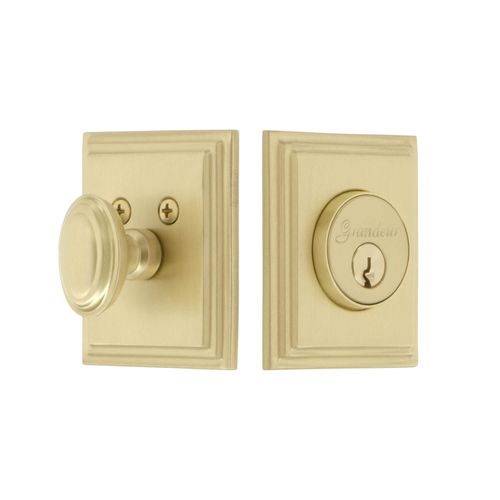

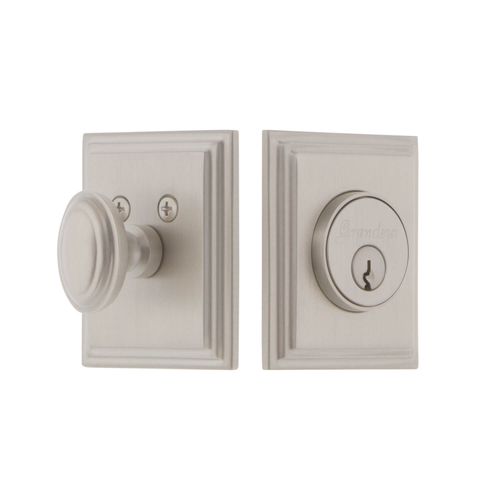

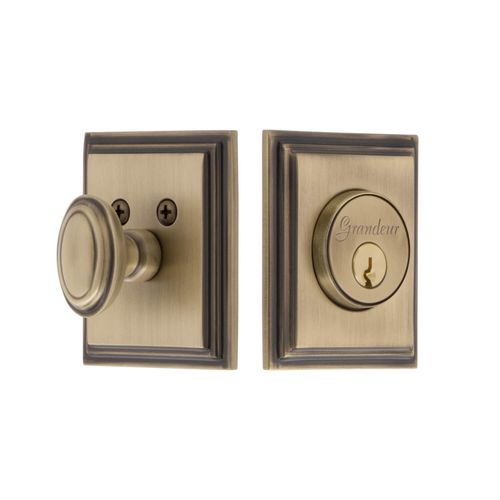

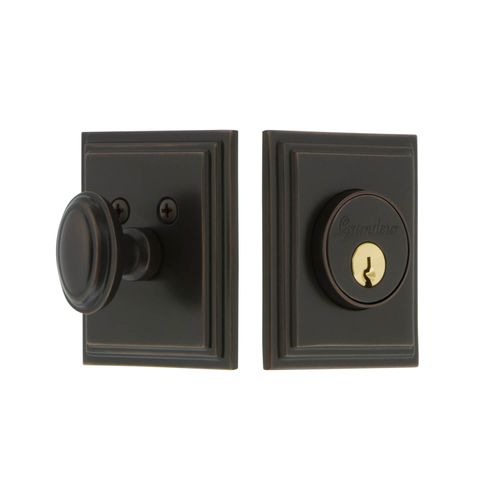

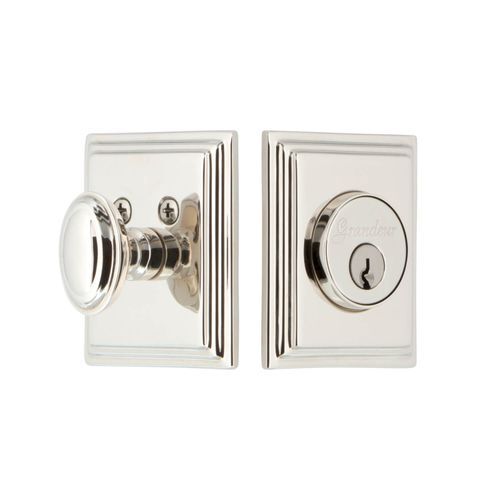

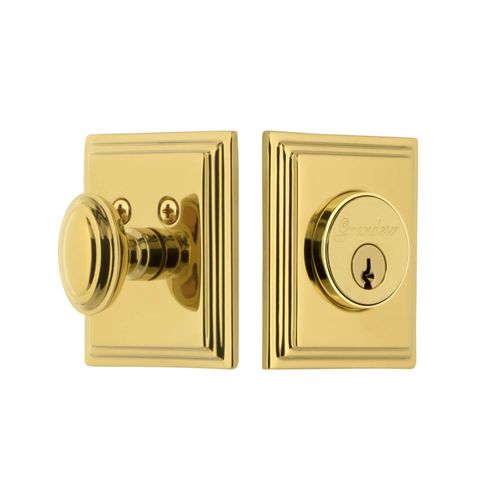

Grandeur Carre Square Single Cylinder Deadbolt

Keep doors secured with the Grandeur Carre Square Single Cylinder Deadbolt featuring a stepped edge design. Pair this deadbolt with a Passage or Privacy set from Grandeur for extra security. All Grandeur products are created from solid (not plated) forged brass. Choose from Antique Pewter, Bright Chrome, Lifetime Brass, Polished Nickel, Satin Brass, Satin Nickel, Timeless Bronze, or Vintage Brass finishes. Available in 2 3/8" or 2 3/4" backsets.

Solid forged brass construction for strength and durability

Assembled by hand in the USA

Lifetime Mechanical warranty

All mounting hardware included

Features Concealed Screw Mechanism for clean, unblemished appearance

Easy installation requiring minimal tools

Non-Concealed Screw Mechanism

Cross Bore Diameter: 2 1/8"

Door Thickness: 1 3/4" - 2"

Deadbolt Height: 2 15/16"

Deadbolt Width: 2 1/2"

Thumb Turn Diameter: 1 7/16"

Thumb Turn Projection: 1 11/16"

Exterior Projection: 11/16"

Strike Plate Height: 2 1/8"

Strike Plate Width: 1"

Keyed Alike

Specifications

Additional Information	Universal Handing; Single Cylinder Deadbolt
Brand	Grandeur
Material	Brass
Unit of Measure	Per Set
